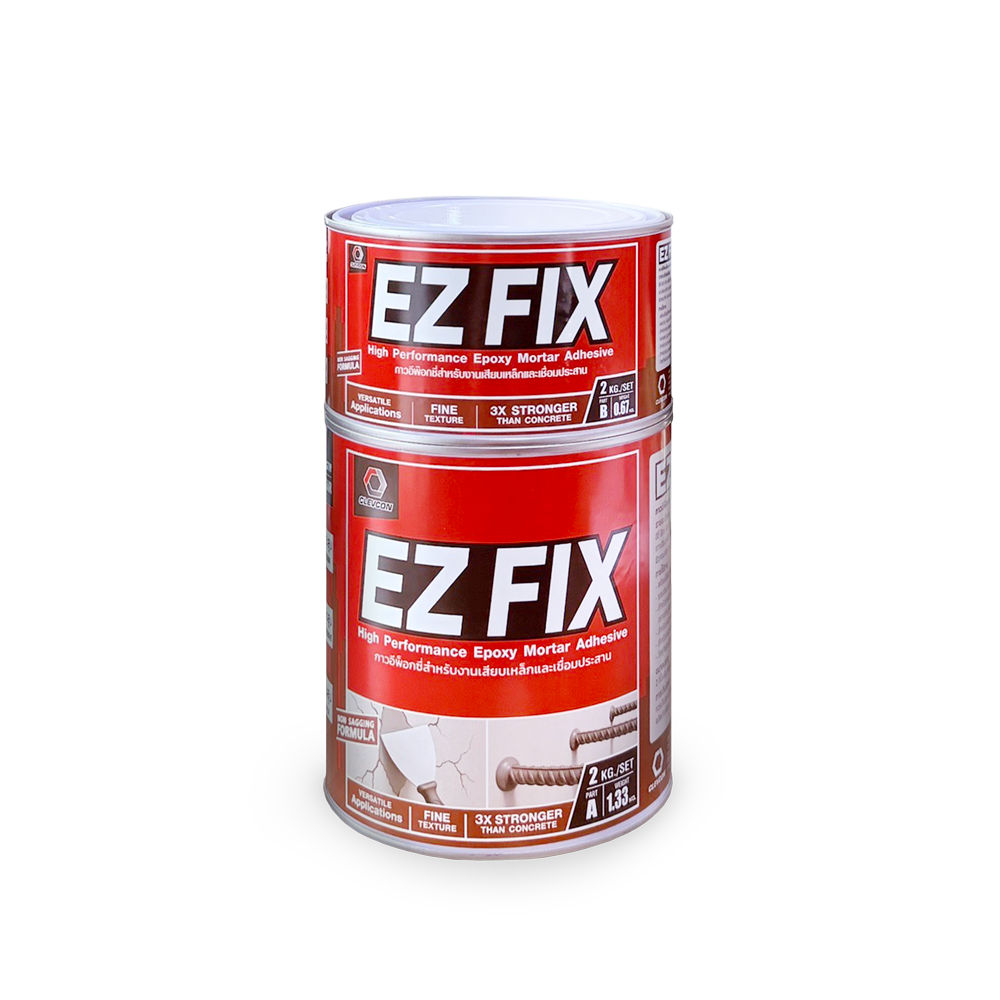

EZ Fix
High Strength Epoxy Anchoring and Adhesive
Data
- Complies with ASTM C881-78 Type 1, Grade 3, Class B+C standards.
- Used for rebar anchoring, bolt installation, bonding various materials, and concrete repair work.
- Solvent-free formulation.
- Thick consistency, non-sagging.
- 2–3 times stronger than concrete, high load-bearing capacity, non-shrinking.
- Can be used even in damp areas.
Technical information
| CHARACTERISTIC (A+B) | VALUE | TEST STANDARD |
|---|---|---|
| Appearance | Part A: Light grey paste Part B: Black paste |
– |
| Mixed Density | 1.68 ± 0.1 kg/L | – |
| Mixing Ratio, by weight | 2:1 (A:B) | – |
| Compressive Strength | >65 MPa | ASTM C190 |
| Bond Strength to Concrete | >30 MPa (Concrete failure) | ASTM C882 |
| Pot Life@30 °C | 30 – 40 minutes | – |
| Setting Time | 2 – 3 hours | – |
| Full Cure | 7 days | – |
Size
| Packaging Size | Part A: 1.33 kg, Part B: 0.67 kg / set |
|---|
Application
Surface Preparation
• The surface must be strong, clean, and dry, free from oil stains, dust, rust, curing agents, paint, loose cement particles, or any contaminants. No primer is required.
Mixing Procedure
• Mix Part A and Part B at a weight ratio of 2:1 using a low-speed drill for 2 minutes. For small quantities, mixing can be done with a paddle or trowel. Ensure the mixture is thoroughly blended into a uniform consistency.
Application Procedure
• For rebar anchoring or bolt embedding, the diameter of the drilled hole should be 2–4 mm larger than the material being anchored.
• For bonding materials, ensure the mixed epoxy adhesive is applied evenly across the prepared surface to avoid voids after bonding.
• For horizontal surface repairs, if needed, use formwork to define the repair area. Each layer should not exceed 30 mm in thickness.
• For vertical surface repairs, each layer should not exceed 10 mm in thickness to prevent sagging.
